Outdoor Cooling For Areas 5-15 m²: Backyard Patios, Gazebos, Pergolas

Imagine This: It's the hottest day of the year. Yet you're outside, cool and comfortable in the fresh air. Your neighbours swelter and sweat - but not you.

Because you installed a high pressure misting system.

This kit transforms your outdoor space into a cool, comfortable oasis. It's designed from the ground up for homeowners who demand quality, durability, performance, and convenience.

Whether you’re hosting guests, relaxing by the pool, using your outdoor kitchen or lounging about on your patio, this economical system delivers instant relief from the summer heat without wetting anything.

How It Works: Our high pressure misting system kits deliver billions of tiny water droplets to your outdoor space. They evaporate instantly and cool the air. Nothing gets wet, unlike cheaper low pressure systems.

This is the 21st century version of evaporative cooling.

The K025 system suits outdoor areas up to 15 square metres (about 3m x 5m), like:

• Backyard play areas
• Patios, gazebos, pool cabana
• Outdoor kitchens.

The cooling effect is typically 7 kW. That's plenty to deliver refreshing outdoor cooling for hot summer days.

Installation: Our kits include everything you need for an effective, functioning high pressure misting system. All you need to provide are basic tools like a hammer, screwdriver, and perhaps an electric drill.

It's a simple job for a competent DIYer or handyman, too. Most installations take a couple of hours from start to finish, tops.

The services you need close to the pump are:

• A single 240 VAC power outlet (standard Australian 3-pin socket)
• A standard garden tap.

Although the pump is splashproof it's best to locate it out of the weather. Even better, simply disconnect it when you're done and store it away in a cupboard or your garage.

What's In The Box

Your kit comes in a compact box:

• DEX-025 high pressure pump and weatherproof transformer
• Inlet water filter, fittings and 2 metres of low pressure piping
• 6 misting nozzles, each with 0.15 mm orifice, inbuilt filter, and anti-drip shut-off
• 5 snap-lock connectors and 1 end connector (1 per nozzle), tool-free assembly
• Quick-connect fittings for low pressure and high pressure piping
• 10 metres of high pressure PA12 pipe
• 12 pipe hangers
• A pipe cutter (for PA12 pipe)
• A pump oil syringe
• A pump sump hex key
• User manual.

Let's quickly cover the major components.

The Pump: The K025 high pressure misting system includes the small and powerful DEX-025 pump. Specially designed for residential use, it's a 'plug and forget' unit that's strong enough to work all day. When the day's done, simply unplug it from the pipework (no tools needed) and pack it away for next time.

• Nothing to adjust, because everything is preset
• Won't disturb your peace and quiet, because it runs almost silently
• Effortless on/ off, because it comes with a wireless remote
• Perfect cooling, because it comes with four on/ off programme cycles already built in.

The Nozzles, Connectors and Pipework: The K025 kit includes patented high-tech nozzles that turn high pressure water into a fog of billions of tiny water droplets. Typically these are installed at 75 cm spacings.

The nozzles include a replaceable micro-filter that removes any remaining particles from the water before they reach the nozzle. They nozzles also include an anti-drip valve that shuts the nozzle as soon as the pipe pressure drops. Nothing gets wet underneath.

The PA12 (polyamide) pipe is a type of nylon that's pressure-resistant and flexible, so you can install it around corners or at odd angles. The pipe fits perfectly into the connectors, giving a tidy, pressure-tight seal without tools.

The Extras: The pipe cutter gives a perfect, clean cut so the PA12 pipe inserts easily into each connector. Pipe hangers hold the PA12 pipe neatly in place against your roof beans, eaves or siding. The hex key and oil syringe are used before startup to fill the pump crankcase (40 ml of oil), and at the stipulated service intervals.

Installation

The K025 high pressure misting system kit has been designed with home owners like you in mind. It will only take you an hour or two to install if you're a competent DIYer, or even just willing to have a go at installation. It's really very simple!

First things first: Please open your misting system kit and check all components have been supplied. Let us know immediately, and we'll make sure to get the parts to you as soon as possible.

Next - and this is IMPORTANT, you need to fill the pump crankcase with a high quality oil BEFORE you turn it on. Flip the pump over and follow the directions on page 5 of the User Manual. A hex key and filling syringe is included - all you need is the oil.

Plan it out: Next, grab a piece of paper and map out the area you want to cool. The K025 kit will effectively cool 15m² of under-roof area with 6 misting nozzles- if your area is smaller, no worries! The pump can handle smaller areas and works just fine with only 2 nozzles, or 5m². No adjustment necessary.

Mark out where you want to place the misting nozzles, keeping in mind that the best cooling effect is when you separate them 75 cm apart. Each nozzle cools around 2.5m2 of under-roof area, so plan your nozzle layout accordingly.

If you need additional parts such as high pressure elbows, tees, connectors or stainless steel pipe - we have those too.

Nozzle spacing: Even though 75 cm is ideal nozzle spacing for most Australian installations, you can go closer or further apart if needed. Further apart, up to 100 cm, works well for low-humidity inland locations. Go closer together, down to 50 cm, in high-humidity locations such as north Queensland or the Capricorn coast.

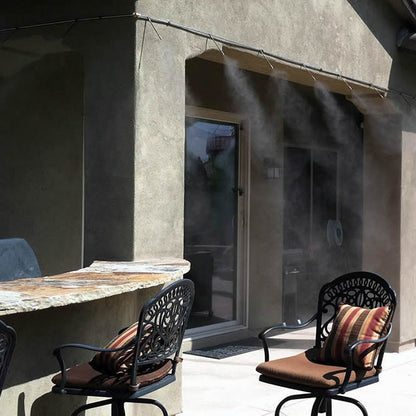

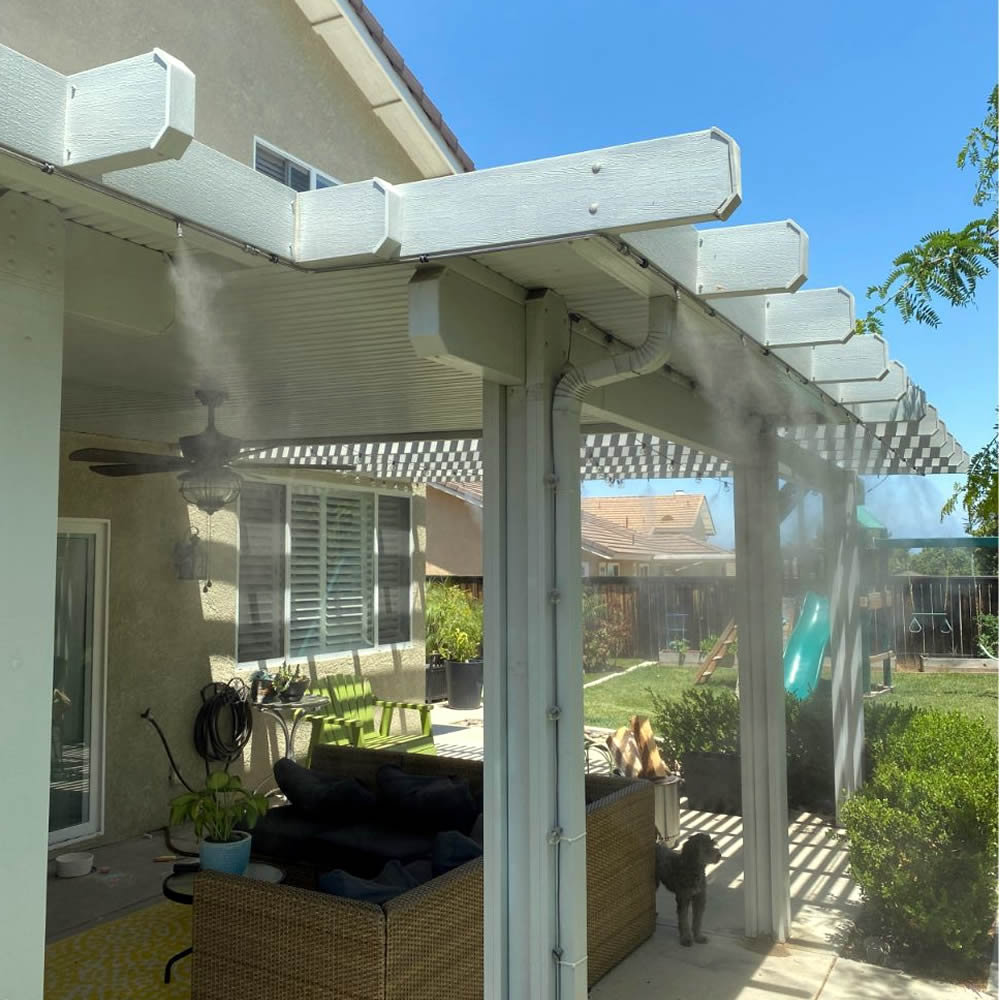

Installing in one line: Many customers prefer to lay out their system in one line, for example under eaves or along one side of a verandah. Great! If this is what you're planning, don't place the nozzle line hard against the house. You'll get a better cooling effect if you install the line on the sides furthest from your house. Because the air movement under a patio, verandah or patio typically moves from the outside in, bringing the mist-cooled area to where you want it.

Installing around a perimeter: You may want to cool a standalone structure like a pool cabana, a rotunda, or an outdoor kitchen that's separate from your house. For installations like this, we recommend you place the line around the perimeter of the structure. It gets simpler if you have persistent wind direction through the summer months (here in the Sunshine Coast it's almost always easterly). Just install the line on the upwind edge so the mist-cooled air flows to where you want it.

Pump location: The pump is splashproof so it's fine if it gets a bit wet, but we strongly recommend you keep it out of the weather. It can't be submerged or stay wet for any length of time. Ideally you disconnect it from the nozzle line and tap so you can store it away in your garage when not in use. It's light, only a couple of kilograms, so this is easy.

The pump can be located some distance away from the nozzle line if you need easy access to water and power. We have additional lengths of high pressure PA12 pipe if the quantity in your kit isn't enough.

The supplied keyless remote has a range of 30 metres in open space. That may be a pump location consideration, too.

Maintenance

The K025 misting system is super easy to keep in tip-top condition. There's just one thing you need to do every year, and that's change the pump crankcase oil. The kit includes the hex key you need to drain and refill the oil - all you need to do is grab some 20W-50 oil ( a small bottle from Super Cheap Auto is $20), and remember to change it once a year.

If you live in an area where the air temperature drops below freezing during winter, it's a good idea to remove the nozzles and drain the nozzle line. Keep the nozzles in your garage and refit before the hot summer days strike.

Sounds simple? Yes, because it is.
